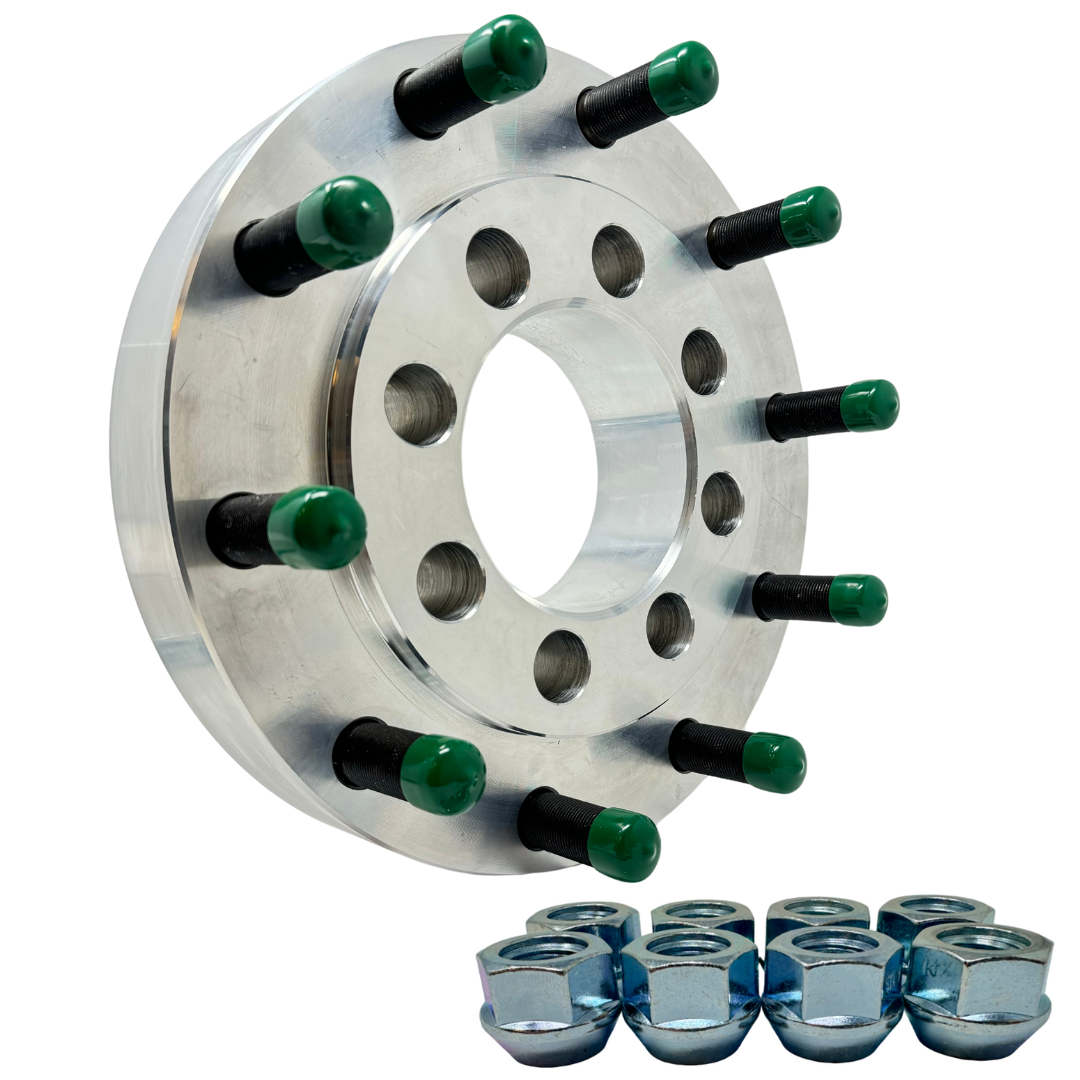

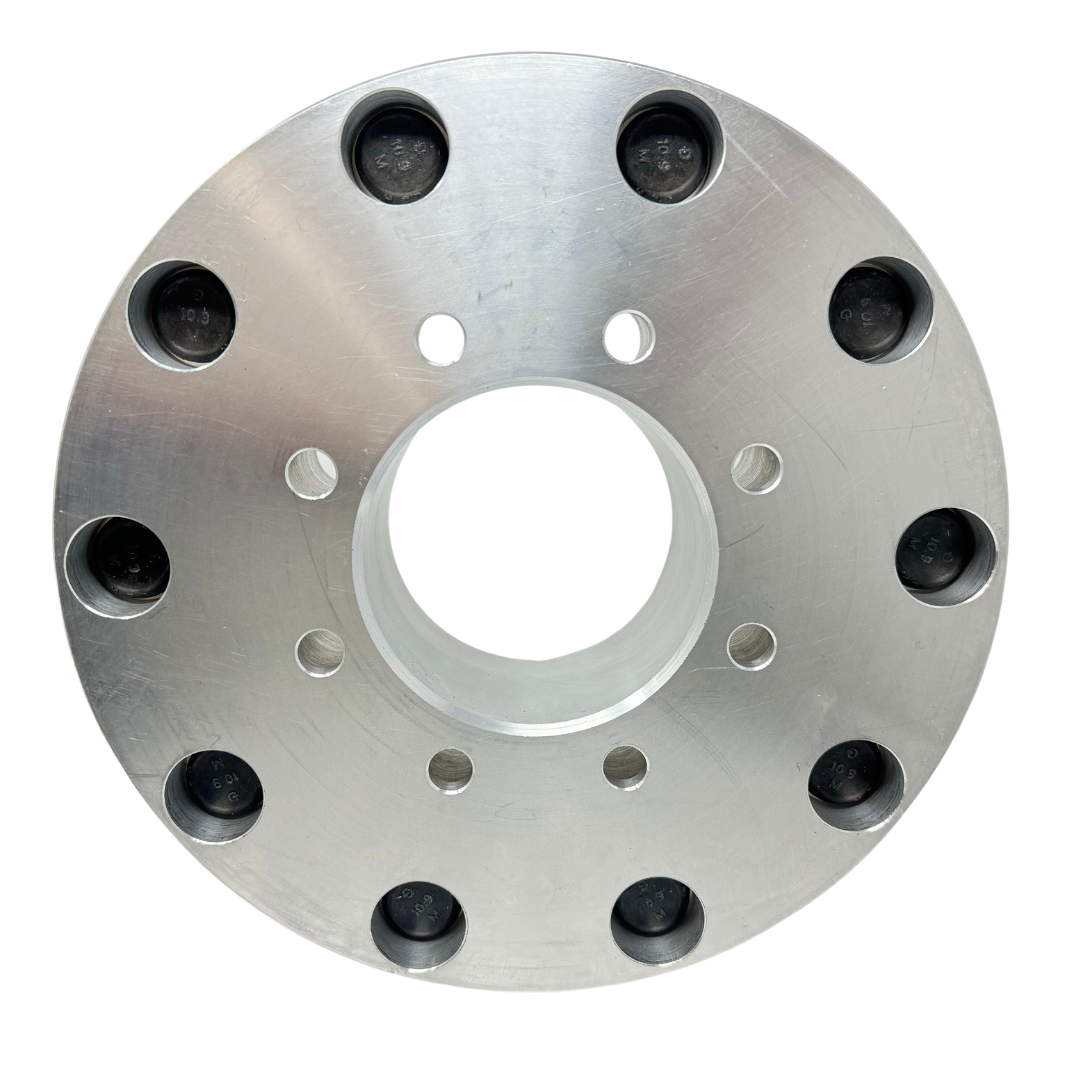

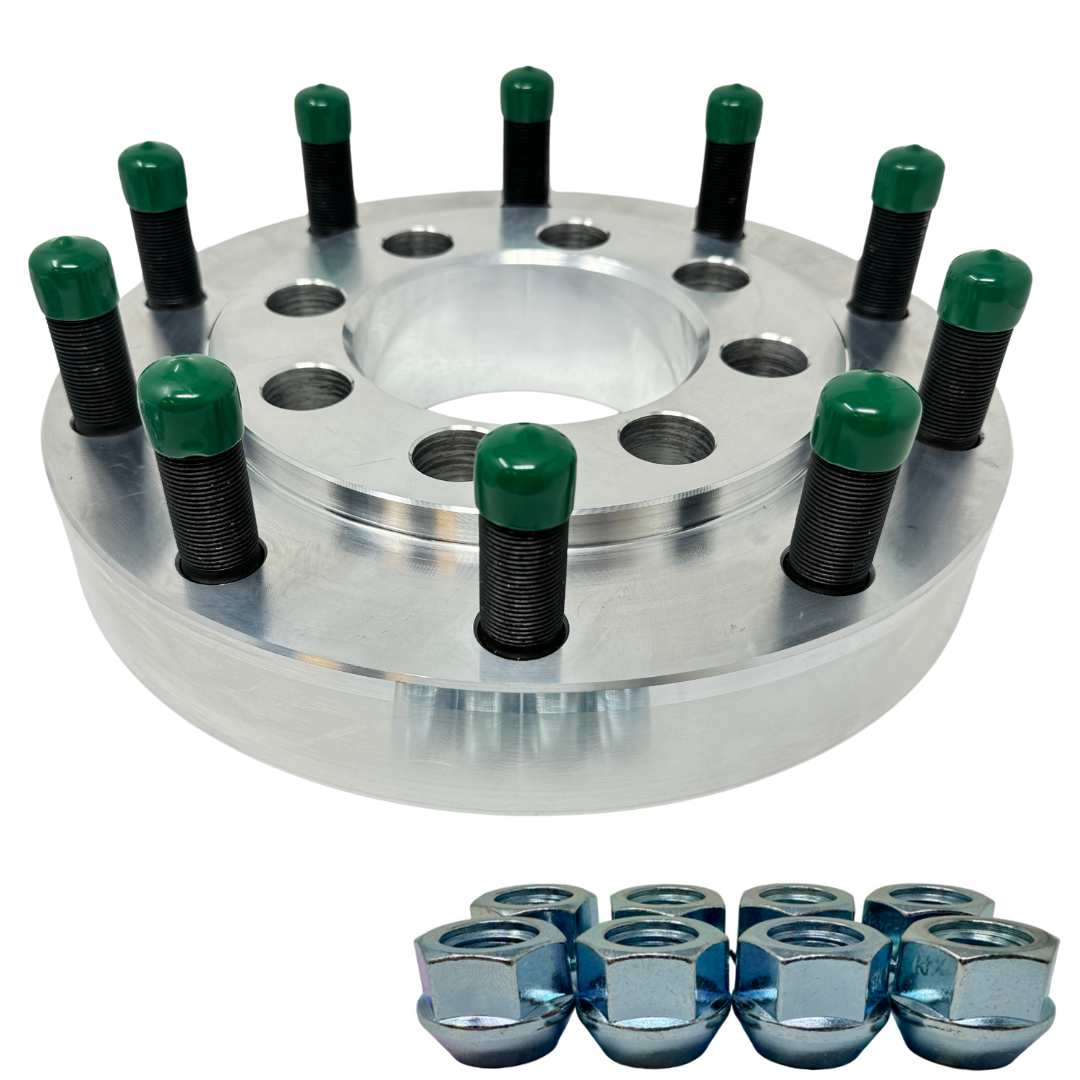

8x6.5 To 10x285 USA Made Chevy GMC 8 To 10 Lug Hub Centric Wheel Adapter 8x6.5 (aka 8x165.1) Adapted To 10x285 Semi Alcoa Wheels 22.5 / 24.5 | 116.7mm Bore To 220mm Centering Lip | 22x1.5 Studs & 14x1.5 Lugs Included | 1" - 4" Thick Available
8x6.5 To 10x285 USA Made Chevy GMC 8 To 10 Lug Hub Centric Wheel Adapter 8x6.5 (aka 8x165.1) Adapted To 10x285 Semi Alcoa Wheels 22.5 / 24.5 | 116.7mm Bore To 220mm Centering Lip | 22x1.5 Studs & 14x1.5 Lugs Included | 1" - 4" Thick Available - 1" Inch Thick (25mm) / Front Wheels (.50"in Long Hub) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Return Policy
Return Policy
No Returns or Exchanges Policy
We take pride in manufacturing high-quality wheel adapters and spacers to meet the needs of our customers. However, please be aware that this product is non-returnable unless they are defective or built incorrectly. We cannot accept returns or exchanges due to customer error or any other reason. We cannot provide recommendations or be held liable for incorrect orders.
We understand that ordering the right product can be challenging, so we encourage our customers to do their research before placing an order. If you have any questions about our products or need assistance with your order, please feel free to contact us.
By placing an order on our website, you acknowledge that you have read, understood and agree to all product descriptions and terms and are 100% sure of what you are ordering. We appreciate your understanding and cooperation in this matter.
NO EXCEPTIONS
Cancelation
Cancelation
Please cancel within 12 hours to avoid a restocking fee.
Orders after 24 hours can not be cancelled as they are already manufactured.
To cancel, call us or send us an email with your order number or name on the order.
8x6.5 To 10x285 USA Made Chevy GMC 8 To 10 Lug Hub Centric Wheel Ad...
*USA LIFETIME WARRANTY*
Scroll Down To See Full Item Description Below. If You Have Any Questions, Message Us Directly In The "Chat With Us" Message Tab & We Will Reply Usually Instantly. We Can Send You A Link To A Product You May Be Looking For Or Give You A Custom Quote Within Seconds! If You Can't Find What You're Looking For, We Can Build It For You HERE IN THE USA!
EVERY ITEM ON OUR SITE COMES WITH 100% FREE USA SHIPPING! NO HIDDEN FEES!
Description
Description
DISCLAIMER
Please Note: These wheel adapters are designed to CONVERT BOLT PATTERN AS WELL AS SPACE YOUR WHEELS FROM THE HUB! With anything thinner than 1.5" inches in thickness, your factory truck studs must be trimmed so the new wheel can sit flush on the adapter. 1.5" inch thick clears stock studs in most cases, but in some rare occurrences the truck may have longer studs. 1.75" inch thick spacers and above always clear so no stud trimming is needed.
This adapter is meant to allow older CHEVY, GMC 2500 3500 trucks that have a 8x6.5(aka 8x165.1) Bolt pattern and 116.7 Hub Bore to be able to use 10x285 Alcoa and other Stock Or Aftermarket Semi Wheels / Rims with a 220 Hub Bore. PLEASE SEE COMPATIBILTY CHART BELOW.
Details:
- ONE Complete Adapter Installation Kit Precision CNC Machined & Made In The USA 🇺🇸
- PLEASE NOTE, THIS AD IS FOR 1 SINGLE ADAPTER
- Precision CNC Machined In The USA From USA Made High Quality T6 Aerospace Grade A+ Solid Extruded Billet Aluminum
- Heat-Treated Through hardened 10.9 Solid Steel Studs For Superior Durability
- Fast and Free Shipping Anywhere In The United States
- Fast World Wide Shipping Also Available
- Custom USA Made Sizes Can Be Made If Desired To Just Space Or Convert Bolt Pattern In Hub Centric & Wheel Centric Designs
- Private Labeling Available
- Our Bullet Proof Wheel Spacers Come With A USA Lifetime Warranty*
Wheel Adapters Specifications:
- Vehicle Hub Bolt Pattern: 8x6.5" (Aka 8x165.1 In Metric Conversion)
-
Wheel Bolt Pattern: 10x285.75
-
Stud Thread Pitch On Adapters: 22x1.5 Heat Treated Sold Steel Carbide OEM Spec Studs
- Lug Nuts Included to Mount Adapters : 14x1.5 Open End Grade A Lug Nuts
-
Thickness: 1" Inch Thick Through 4 Inch Thicknesses Available
- Truck Hub Center Bore: 116.7mm Chevy GMC OEM Spec Hub Bore
- Wheel Centering Lip Bore: 220mm Semi Wheels OEM Spec Lip ( ANY CUSTOM WHEEL CENTERING LIP CAN BE MADE UPON REQUEST)
Vehicle compatibility:
Chevrolet
- Avalanche 02'-7'
- C/K-20 2wd OBS 88'-00'
- C-30 Pickup 2wd (1 Ton) 88'-00
- K/C-2500 88'-00'
- K/C-3500 88'-00
- Silverado 2500 99'-10 (Dually or non Dually)
- Silverado 3500 00'-10' (Dually or non Dually)
- Suburban 2500 89'-13
GMC
- C 2500/3500 Pickup 88'-00'
- K-2500/3500 Pickup 4wd 88'-00
- Savana Van 2500/3500 97'-20
- Sierra 2500 HD 01'-10'
- Sierra 3500 99'-10 (Dually or non Dually)
- Yukon 2500 00'-13'
Hummer
- H1 (All Years)
- H2 03'-10'
- THE FRONT WHEEL ADAPTERS COME WITH A 1/2" INCH LONG HUB THAT IS MEANT FOR SINGLE WHEELS TO BE PUT ON THE FRONT OF YOUR TRUCK.
- SUPER SINGLE WHEEL ADAPTERS COME WITH A 3/4" IN LONG MEANT FOR 4 SUPER SINGLES IN ALL 4 CORNERS SQUARED.
- REAR DUAL STEEL WHEELS ADAPTERS COME WITH A 1" INCH LONG HUB.
- REAR INNER STEEL AND OUTER ALUM WHEEL ADAPTERS COME WITH A 1.25" LONG HUB.
-
REAR DUAL ALUMINUM WHEEL ADAPTERS COME WITH A 1.50" LONG HUB.
Important installation information
If the studs on the hub are longer than the thickness of the wheel adapters the studs will need to be trimmed so they do not protrude past the thickness of the adapter & so the wheel can sit flush on the adapter/spacer face. This set comes complete with a set of open end lug nuts stated above, please make sure your vehicles studs matches the thread pitch of the lugs provided or you may need to purchase a lug nut kit to accommodate proper installation. Lots of people install these at home, but we always strongly recommend professional installation. If you're not sure if these wheel adapters will work with your vehicle, send us a message or an email so we can get you set up, and ready to roll!
Uses and facts about our spacers and adapters
Our wheel spacers and adapters are commonly used for multiple reasons, from eliminating wheel & tire rubbing against shocks and struts, clearing break calipers, making room for larger tire clearance, or to adapt the bolt pattern of your vehicle in order to fit different wheels / rims. They will increase driving stability and handling performance by widening the track of your vehicle, and improve the look of your vehicle by giving you a more aggressive stance. All of our spacers and adapters come standard with heat-treated, hardened steel studs. Lastly we only use Aerospace grade 6061 T-6 Solid Billet Aluminum on all of our wheel spacers and adapters.
We are the experts in all things wheel accessory, and we have 25+ years of knowledge to back it up!
At Wheel Adapters USA, we have been in the wheel accessory game longer than some of you have been alive, so we know a thing or two about wheel accessories. Rest assured you are purchasing the best quality parts the market has to offer at the absolute most competitive prices. Our prices may not be the lowest, but that's only because we wont sell you junk! Ride with peace of mind knowing you're riding on the BEST!
***Lifetime warranty against all manufacturer defects***
